Complex Carbohydrate Magnetic Resonance Database (CCMRD)
Carbohydrates are crucial for various life activities in living organisms. The Complex Carbohydrates Magnetic Resonance Database (CCMRD), a solid-state NMR database for complex carbohydrates developed at Michigan State University. The Solid-state NMR spectroscopy reveals the molecular structure and dynamics of insoluble complex carbohydrates.
| Database ID | Trival Name | Linear Code | Compound Class | Taxonomy Domain | Species | Residue | SNFG | Chemical Structure | Chemical Shifts (ppm) | Spectrometer (MHz) | Temperature (K) | pH | NMR Reference Compound | Sample Treatment | Reference |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

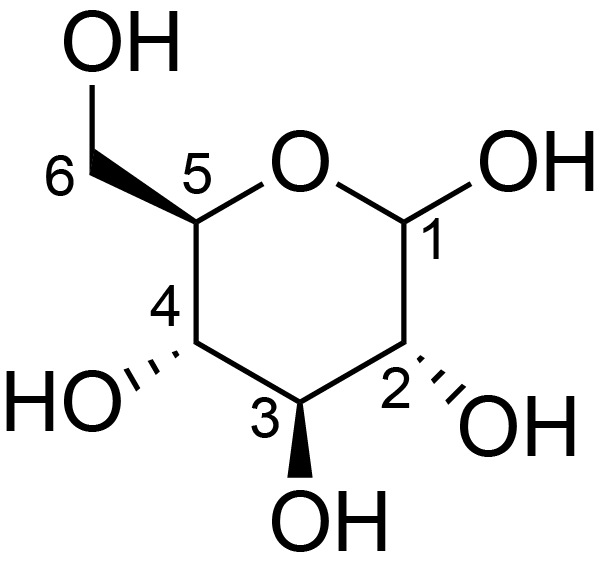

| ccmrd_100 | Cellulose | Glcp | Polysaccharide | plant | Zea mays | b-D-Glcp |
|
|
C1: 105.4, C2: 72.0, C4: 90.1, C5: 72.0, C6: 65.4 | 800 | 298.0 | None | TMS | Whole cell | Tuo Wang et al., Cellulose Structural Polymorphism in Plant Primary Cell Walls Investigated by High-Field 2D Solid-State NMR Spectroscopy and Density Functional Theory Calculations, Biomacromolecules, 2016 |
| ccmrd_101 | Cellulose | Glcp | Polysaccharide | plant | Zea mays | b-D-Glcp |
|
|
C1: 105.2, C2: 72.7, C3: 75.7, C4: 84.4, C5: 75.7, C6: 62.7 | 800 | 298.0 | None | TMS | Whole cell | Tuo Wang et al., Cellulose Structural Polymorphism in Plant Primary Cell Walls Investigated by High-Field 2D Solid-State NMR Spectroscopy and Density Functional Theory Calculations, Biomacromolecules, 2016 |
| ccmrd_102 | Cellulose | Glcp | Polysaccharide | plant | Zea mays | b-D-Glcp |
|
|
C1: 105.2, C2: 74.2, C3: 74.2, C4: 83.6, C5: 75.5, C6: 61.6 | 800 | 298.0 | None | TMS | Whole cell | Tuo Wang et al., Cellulose Structural Polymorphism in Plant Primary Cell Walls Investigated by High-Field 2D Solid-State NMR Spectroscopy and Density Functional Theory Calculations, Biomacromolecules, 2016 |

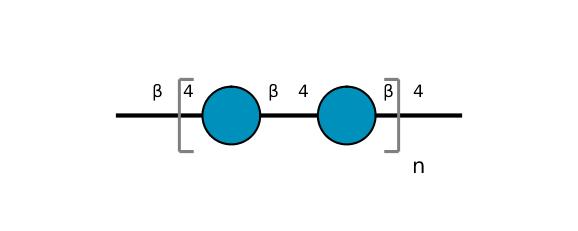

| ccmrd_103 | Cellulose | Glcp | Polysaccharide | plant | Zea mays | b-D-Glcp |
|
|
C1: 105.4, C2: 73.2, C3: 74.7, C4: 85.4, C5: 74.7, C6: 63.8 | 800 | 298.0 | None | TMS | Whole cell | Tuo Wang et al., Cellulose Structural Polymorphism in Plant Primary Cell Walls Investigated by High-Field 2D Solid-State NMR Spectroscopy and Density Functional Theory Calculations, Biomacromolecules, 2016 |
| ccmrd_104 | Arabinan | Araf | Polysaccharide | plant | Arabidopsis thaliana | a-L-Araf |
|
|
C1: 107.1, C2: 87.7 | 800 | 296.0 | None | TMS | Whole cell | Pyae Phyo et al., Effects of Pectin Molecular Weight Changes on the Structure, Dynamics, and Polysaccharide Interactions of Primary Cell Walls of Arabidopsis thaliana: Insights from Solid-State NMR, Biomacromolecules, 2017 |
| ccmrd_105 | Arabinan | Araf | Polysaccharide | plant | Arabidopsis thaliana | a-L-Araf |
|
|
C1: 107.0, C2: 85.8 | 800 | 296.0 | None | TMS | Whole cell | Pyae Phyo et al., Effects of Pectin Molecular Weight Changes on the Structure, Dynamics, and Polysaccharide Interactions of Primary Cell Walls of Arabidopsis thaliana: Insights from Solid-State NMR, Biomacromolecules, 2017 |

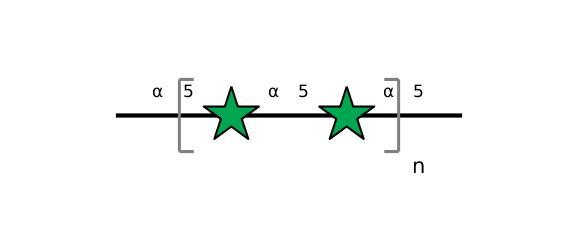

| ccmrd_106 | Arabinan | Araf | Polysaccharide | plant | Arabidopsis thaliana | a-L-Araf |
|
|
C1: 108.2, C2: 81.8, C3: 77.7, C4: 83.1, C5: 67.6 | 800 | 296.0 | None | TMS | Whole cell | Pyae Phyo et al., Effects of Pectin Molecular Weight Changes on the Structure, Dynamics, and Polysaccharide Interactions of Primary Cell Walls of Arabidopsis thaliana: Insights from Solid-State NMR, Biomacromolecules, 2017 |
| ccmrd_107 | Arabinan | Araf | Polysaccharide | plant | Arabidopsis thaliana | a-L-Araf |
|
|
C1: 107.7, C2: 82.3, C3: 77.4, C4: 84.5, C5: 62.0 | 800 | 296.0 | None | TMS | Whole cell | Pyae Phyo et al., Effects of Pectin Molecular Weight Changes on the Structure, Dynamics, and Polysaccharide Interactions of Primary Cell Walls of Arabidopsis thaliana: Insights from Solid-State NMR, Biomacromolecules, 2017 |
| ccmrd_108 | Arabinan | Araf | Polysaccharide | plant | Arabidopsis thaliana | a-L-Araf |
|
|
C1: 108.2, C2: 80.1 | 800 | 296.0 | None | TMS | Whole cell | Pyae Phyo et al., Effects of Pectin Molecular Weight Changes on the Structure, Dynamics, and Polysaccharide Interactions of Primary Cell Walls of Arabidopsis thaliana: Insights from Solid-State NMR, Biomacromolecules, 2017 |
| ccmrd_109 | Arabinan | Araf | Polysaccharide | plant | Arabidopsis thaliana | a-L-Araf |
|
|
C1: 108.5, C2: 88.0 | 800 | 296.0 | None | TMS | Whole cell | Pyae Phyo et al., Effects of Pectin Molecular Weight Changes on the Structure, Dynamics, and Polysaccharide Interactions of Primary Cell Walls of Arabidopsis thaliana: Insights from Solid-State NMR, Biomacromolecules, 2017 |
