Complex Carbohydrate Magnetic Resonance Database (CCMRD)
A solid-state NMR database for complex carbohydrates developed at Michigan State University. Solid-state NMR spectroscopy reveals the molecular structure and 3D dynamics of insoluble complex carbohydrates and cell wall polymers.
669 Compound Entries
Solid-State NMR Shifts
SNFG Structure Notation
| Database ID | Trivial Name | Linear Code | Compound Class | Taxonomy Domain | Species | Residue | SNFG Diagram | Chemical Structure | Chemical Shifts (ppm) | Spectrometer (MHz) | Temp (K) | pH | Reference Compound | Sample Treatment | Reference & Publication |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ccmrd_90 | Cellulose | Glcp | Polysaccharide | plant | Brachypodium distachyon | b-D-Glcp |
|
|
C1: 105.0, C2: 72.6, C3: 75.6, C4: 89.0, C5: 72.6, C6: 65.0 | 800 | 298.0 | - | TMS | Whole cell |
Tuo Wang et al. (2016)
Cellulose Structural Polymorphism in Plant Primary Cell Walls Investigated by High-Field 2D Solid-State NMR Spectroscopy and Density Functional Theory Calculations Biomacromolecules |
| ccmrd_91 | Cellulose | Glcp | Polysaccharide | plant | Brachypodium distachyon | b-D-Glcp |
|
|
C1: 104.1, C2: 71.8, C3: 75.2, C4: 88.1, C5: 71.1, C6: 65.9 | 800 | 298.0 | - | TMS | Whole cell |
Tuo Wang et al. (2016)
Cellulose Structural Polymorphism in Plant Primary Cell Walls Investigated by High-Field 2D Solid-State NMR Spectroscopy and Density Functional Theory Calculations Biomacromolecules |

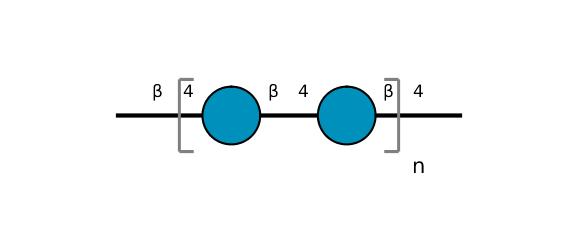

| ccmrd_92 | Cellulose | Glcp | Polysaccharide | plant | Brachypodium distachyon | b-D-Glcp |
|
|
C1: 105.3, C2: 72.6, C3: 75.2, C4: 87.5, C5: 72.6, C6: 64.8 | 800 | 298.0 | - | TMS | Whole cell |
Tuo Wang et al. (2016)
Cellulose Structural Polymorphism in Plant Primary Cell Walls Investigated by High-Field 2D Solid-State NMR Spectroscopy and Density Functional Theory Calculations Biomacromolecules |
| ccmrd_93 | Cellulose | Glcp | Polysaccharide | plant | Brachypodium distachyon | b-D-Glcp |
|
|
C1: 104.8, C4: 90.0, C6: 65.4 | 800 | 298.0 | - | TMS | Whole cell |
Tuo Wang et al. (2016)
Cellulose Structural Polymorphism in Plant Primary Cell Walls Investigated by High-Field 2D Solid-State NMR Spectroscopy and Density Functional Theory Calculations Biomacromolecules |
| ccmrd_94 | Cellulose | Glcp | Polysaccharide | plant | Brachypodium distachyon | b-D-Glcp |
|
|
C1: 105.1, C2: 72.9, C3: 75.4, C4: 84.5, C5: 75.4, C6: 62.4 | 800 | 298.0 | - | TMS | Whole cell |
Tuo Wang et al. (2016)
Cellulose Structural Polymorphism in Plant Primary Cell Walls Investigated by High-Field 2D Solid-State NMR Spectroscopy and Density Functional Theory Calculations Biomacromolecules |
| ccmrd_95 | Cellulose | Glcp | Polysaccharide | plant | Brachypodium distachyon | b-D-Glcp |
|
|
C1: 105.0, C2: 72.6, C3: 75.3, C4: 83.7, C5: 75.3, C6: 61.6 | 800 | 298.0 | - | TMS | Whole cell |
Tuo Wang et al. (2016)
Cellulose Structural Polymorphism in Plant Primary Cell Walls Investigated by High-Field 2D Solid-State NMR Spectroscopy and Density Functional Theory Calculations Biomacromolecules |

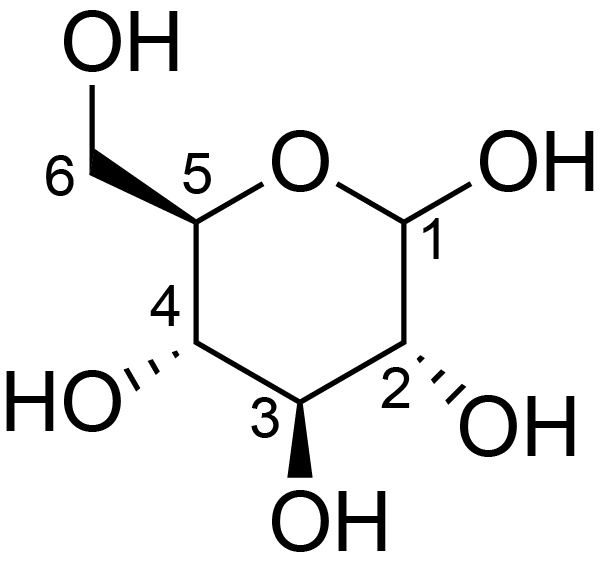

| ccmrd_96 | Cellulose | Glcp | Polysaccharide | plant | Zea mays | b-D-Glcp |
|
|
C1: 105.8, C2: 71.7, C3: 75.7, C4: 89.0, C5: 72.7, C6: 65.0 | 800 | 298.0 | - | TMS | Whole cell |
Tuo Wang et al. (2016)
Cellulose Structural Polymorphism in Plant Primary Cell Walls Investigated by High-Field 2D Solid-State NMR Spectroscopy and Density Functional Theory Calculations Biomacromolecules |
| ccmrd_97 | Cellulose | Glcp | Polysaccharide | plant | Zea mays | b-D-Glcp |
|
|
C1: 105.0, C2: 72.7, C3: 75.7, C4: 89.0, C5: 72.7, C6: 65.3 | 800 | 298.0 | - | TMS | Whole cell |
Tuo Wang et al. (2016)
Cellulose Structural Polymorphism in Plant Primary Cell Walls Investigated by High-Field 2D Solid-State NMR Spectroscopy and Density Functional Theory Calculations Biomacromolecules |
| ccmrd_98 | Cellulose | Glcp | Polysaccharide | plant | Zea mays | b-D-Glcp |
|
|
C1: 104.1, C2: 71.2, C4: 88.0, C5: 71.2, C6: 66.0 | 800 | 298.0 | - | TMS | Whole cell |
Tuo Wang et al. (2016)
Cellulose Structural Polymorphism in Plant Primary Cell Walls Investigated by High-Field 2D Solid-State NMR Spectroscopy and Density Functional Theory Calculations Biomacromolecules |
| ccmrd_99 | Cellulose | Glcp | Polysaccharide | plant | Zea mays | b-D-Glcp |
|
|
C1: 105.4, C2: 72.8, C3: 75.2, C4: 87.9, C5: 72.6, C6: 64.9 | 800 | 298.0 | - | TMS | Whole cell |
Tuo Wang et al. (2016)
Cellulose Structural Polymorphism in Plant Primary Cell Walls Investigated by High-Field 2D Solid-State NMR Spectroscopy and Density Functional Theory Calculations Biomacromolecules |
