Complex Carbohydrate Magnetic Resonance Database (CCMRD)
A solid-state NMR database for complex carbohydrates developed at Michigan State University. Solid-state NMR spectroscopy reveals the molecular structure and 3D dynamics of insoluble complex carbohydrates and cell wall polymers.
669 Compound Entries
Solid-State NMR Shifts
SNFG Structure Notation
| Database ID | Trivial Name | Linear Code | Compound Class | Taxonomy Domain | Species | Residue | SNFG Diagram | Chemical Structure | Chemical Shifts (ppm) | Spectrometer (MHz) | Temp (K) | pH | Reference Compound | Sample Treatment | Reference & Publication |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ccmrd_688 | cellulose | Glcp | Polysaccharide | plant | Populus × canadensis | b-D-Glcp | SNFG N/A |
|
C3: 75.5, C4: 88.9, C5: 70.9, C6: 65.8 | 600/400 | 298.0 | - | TMS | whole cell |
Alex Kirui et al. (2022)
Carbohydrate-aromatic interface and molecular architecture of lignocellulose NATURE COMMUNICATIONS |
| ccmrd_689 | cellulose | Glcp | Polysaccharide | plant | Populus × canadensis | b-D-Glcp | SNFG N/A |
|
C5: 73.7, C6: 61.2 | 600/400 | 298.0 | - | TMS | whole cell |
Alex Kirui et al. (2022)
Carbohydrate-aromatic interface and molecular architecture of lignocellulose NATURE COMMUNICATIONS |

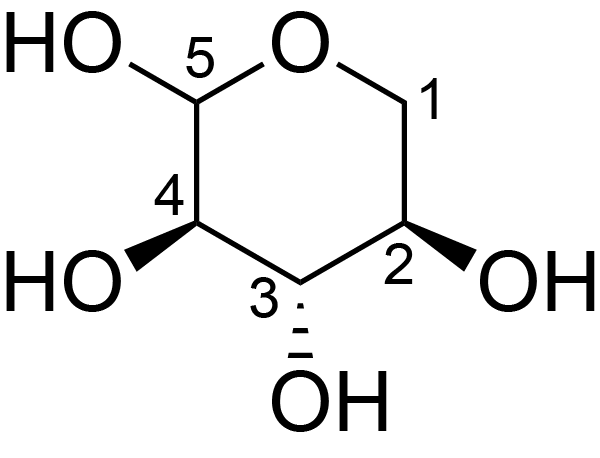

| ccmrd_690 | Xylan | Xylp | Polysaccharide | plant | Populus × canadensis | ?-?-Xylp | SNFG N/A |
|
C1: 104.8, C2: 72.1, C3: 73.2, C4: 82.0, C5: 63.9 | 600/400 | 298.0 | - | TMS | whole cell |
Alex Kirui et al. (2022)
Carbohydrate-aromatic interface and molecular architecture of lignocellulose NATURE COMMUNICATIONS |
| ccmrd_691 | Xylan | Xylp | Polysaccharide | plant | Populus × canadensis | ?-?-Xylp | SNFG N/A |
|
C1: 102.2, C2: 73.6, C3: 74.2, C4: 77.9, C5: 64.1 | 600/400 | 298.0 | - | TMS | whole cell |
Alex Kirui et al. (2022)
Carbohydrate-aromatic interface and molecular architecture of lignocellulose NATURE COMMUNICATIONS |

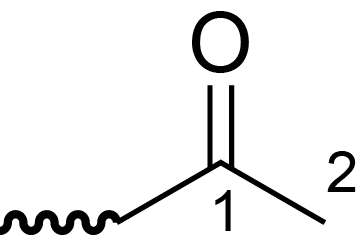

| ccmrd_692 | Acetyl-methyl groups | Ac | AcMe Groups | plant | Populus × canadensis | ?-?-Ac | SNFG N/A |
|
C1: 174.0, C2: 21.0 | 600/400 | 298.0 | - | TMS | whole cell |
Alex Kirui et al. (2022)
Carbohydrate-aromatic interface and molecular architecture of lignocellulose NATURE COMMUNICATIONS |
| ccmrd_693 | cellulose | Glcp | Polysaccharide | plant | Populus × canadensis | b-D-Glcp | SNFG N/A |
|
C1: 104.8, C2: 72.1, C3: 75.0, C4: 88.9, C5: 72.4, C6: 64.9 | 600/400 | 298.0 | - | TMS | whole cell |
Alex Kirui et al. (2022)
Carbohydrate-aromatic interface and molecular architecture of lignocellulose NATURE COMMUNICATIONS |
| ccmrd_694 | cellulose | Glcp | Polysaccharide | plant | Populus × canadensis | b-D-Glcp | SNFG N/A |
|
C1: 104.8, C2: 72.1, C3: 74.3, C4: 87.9, C5: 70.1, C6: 65.5 | 600/400 | 298.0 | - | TMS | whole cell |
Alex Kirui et al. (2022)
Carbohydrate-aromatic interface and molecular architecture of lignocellulose NATURE COMMUNICATIONS |
| ccmrd_695 | cellulose | Glcp | Polysaccharide | plant | Populus × canadensis | b-D-Glcp | SNFG N/A |
|
C1: 104.8, C2: 72.1, C3: 75.7, C4: 84.3, C5: 75.0, C6: 62.3 | 600/400 | 298.0 | - | TMS | whole cell |
Alex Kirui et al. (2022)
Carbohydrate-aromatic interface and molecular architecture of lignocellulose NATURE COMMUNICATIONS |
| ccmrd_696 | cellulose | Glcp | Polysaccharide | plant | Populus × canadensis | b-D-Glcp | SNFG N/A |
|
C1: 104.8, C2: 72.1, C3: 75.2, C4: 83.4, C5: 73.7, C6: 61.3 | 600/400 | 298.0 | - | TMS | whole cell |
Alex Kirui et al. (2022)
Carbohydrate-aromatic interface and molecular architecture of lignocellulose NATURE COMMUNICATIONS |
