Complex Carbohydrate Magnetic Resonance Database (CCMRD)
A solid-state NMR database for complex carbohydrates developed at Michigan State University. Solid-state NMR spectroscopy reveals the molecular structure and 3D dynamics of insoluble complex carbohydrates and cell wall polymers.
669 Compound Entries
Solid-State NMR Shifts
SNFG Structure Notation
| Database ID | Trivial Name | Linear Code | Compound Class | Taxonomy Domain | Species | Residue | SNFG Diagram | Chemical Structure | Chemical Shifts (ppm) | Spectrometer (MHz) | Temp (K) | pH | Reference Compound | Sample Treatment | Reference & Publication |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ccmrd_608 | Arabinan | Araf | Polysaccharide | plant | Arabidopsis thaliana | ?-?-Araf | SNFG N/A |
|
C1: 110.3, C2: 82.3 | 400 | 298.0 | - | TMS | whole cell |
Alex Kirui et al. (2021)
A pectin methyltransferase modulates polysaccharide dynamics and interactions in Arabidopsis primary cell walls: Evidence from solid-state NMR Carbohydrate Polymers |
| ccmrd_609 | cellulose | Glcp | Polysaccharide | plant | Arabidopsis thaliana | b-D-Glcp | SNFG N/A |
|
C1: 105.2, C2: 72.9, C3: 77.8, C4: 89.2, C5: 73.0, C6: 64.9 | 400 | 298.0 | - | TMS | whole cell (qua2 mutant) |
Alex Kirui et al. (2021)
A pectin methyltransferase modulates polysaccharide dynamics and interactions in Arabidopsis primary cell walls: Evidence from solid-state NMR Carbohydrate Polymers |
| ccmrd_610 | cellulose | Glcp | Polysaccharide | plant | Arabidopsis thaliana | b-D-Glcp | SNFG N/A |
|
C1: 105.2, C2: 72.9, C3: 76.8, C4: 84.8, C5: 75.8, C6: 61.9 | 400 | 298.0 | - | TMS | whole cell (qua2 mutant) |
Alex Kirui et al. (2021)
A pectin methyltransferase modulates polysaccharide dynamics and interactions in Arabidopsis primary cell walls: Evidence from solid-state NMR Carbohydrate Polymers |

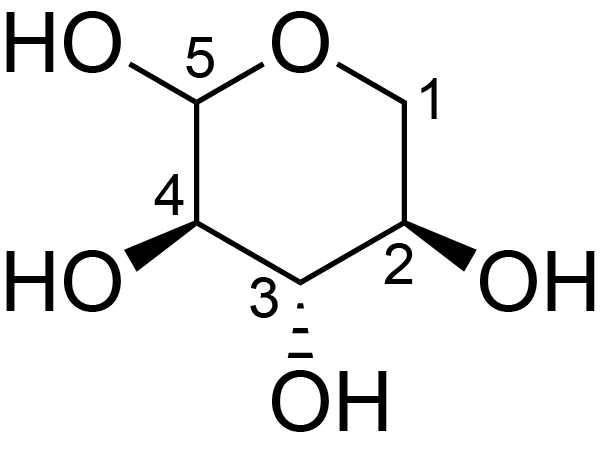

| ccmrd_611 | Xyloglucan | Xylp | Polysaccharide | plant | Arabidopsis thaliana | ?-?-Xylp | SNFG N/A |
|
C1: 99.9, C2: 72.9, C4: 70.7, C5: 62.5 | 400 | 298.0 | - | TMS | whole cell (qua2 mutant) |
Alex Kirui et al. (2021)
A pectin methyltransferase modulates polysaccharide dynamics and interactions in Arabidopsis primary cell walls: Evidence from solid-state NMR Carbohydrate Polymers |

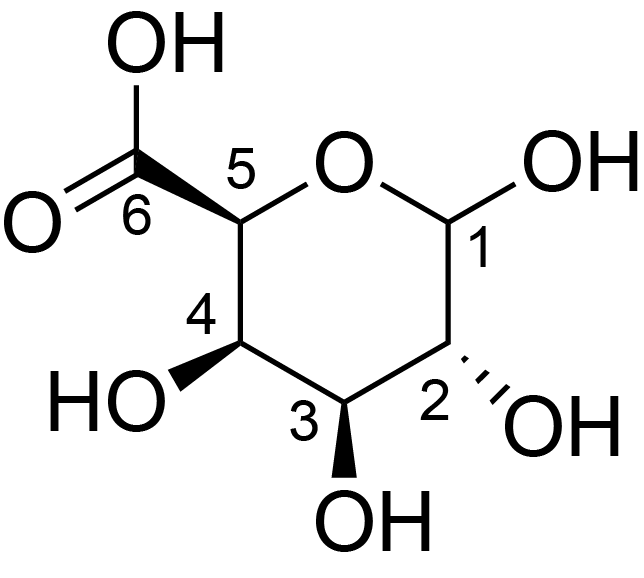

| ccmrd_612 | Galacturonic acid | GalpA | Polysaccharide | plant | Arabidopsis thaliana | ?-?-GalpA | SNFG N/A |
|
C1: 100.0, C2: 69.5 | 400 | 298.0 | - | TMS | whole cell (qua2 mutant) |
Alex Kirui et al. (2021)
A pectin methyltransferase modulates polysaccharide dynamics and interactions in Arabidopsis primary cell walls: Evidence from solid-state NMR Carbohydrate Polymers |

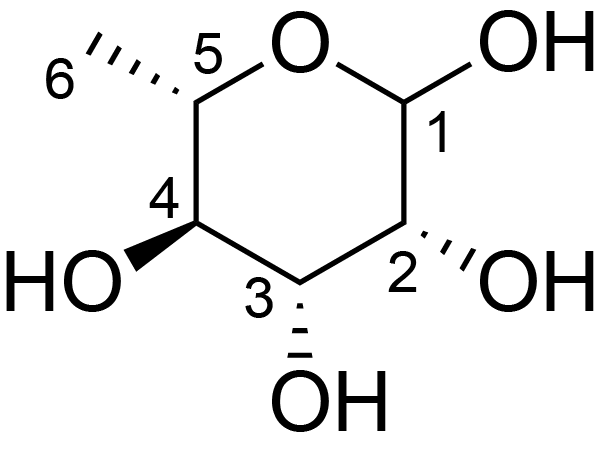

| ccmrd_613 | Rhamnose units | Rhap | Polysaccharide | plant | Arabidopsis thaliana | ?-?-Rhap | SNFG N/A |
|
C1: 100.1, C2: 79.0, C5: 69.5, C6: 17.7 | 400 | 298.0 | - | TMS | whole cell (qua2 mutant) |
Alex Kirui et al. (2021)
A pectin methyltransferase modulates polysaccharide dynamics and interactions in Arabidopsis primary cell walls: Evidence from solid-state NMR Carbohydrate Polymers |

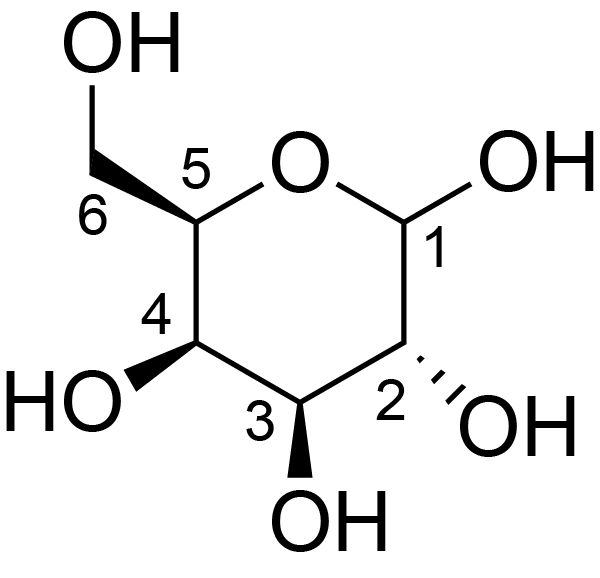

| ccmrd_614 | Galactose units | Galp | Polysaccharide | plant | Arabidopsis thaliana | ?-?-Galp | SNFG N/A |
|
C1: 105.2, C2: 72.9, C3: 72.9, C5: 74.9, C6: 61.9 | 400 | 298.0 | - | TMS | whole cell (qua2 mutant) |
Alex Kirui et al. (2021)
A pectin methyltransferase modulates polysaccharide dynamics and interactions in Arabidopsis primary cell walls: Evidence from solid-state NMR Carbohydrate Polymers |
| ccmrd_615 | Arabinan | Araf | Polysaccharide | plant | Arabidopsis thaliana | ?-?-Araf | SNFG N/A |
|
C1: 107.5 | 400 | 298.0 | - | TMS | whole cell (qua2 mutant) |
Alex Kirui et al. (2021)
A pectin methyltransferase modulates polysaccharide dynamics and interactions in Arabidopsis primary cell walls: Evidence from solid-state NMR Carbohydrate Polymers |
| ccmrd_616 | Arabinan | Araf | Polysaccharide | plant | Arabidopsis thaliana | ?-?-Araf | SNFG N/A |
|
C1: 108.5, C2: 82.1, C3: 77.8, C5: 67.9 | 400 | 298.0 | - | TMS | whole cell (qua2 mutant) |
Alex Kirui et al. (2021)
A pectin methyltransferase modulates polysaccharide dynamics and interactions in Arabidopsis primary cell walls: Evidence from solid-state NMR Carbohydrate Polymers |
| ccmrd_617 | Arabinan | Araf | Polysaccharide | plant | Arabidopsis thaliana | ?-?-Araf | SNFG N/A |
|
C1: 108.5, C2: 82.1, C3: 77.8, C5: 62.1 | 400 | 298.0 | - | TMS | whole cell (qua2 mutant) |
Alex Kirui et al. (2021)
A pectin methyltransferase modulates polysaccharide dynamics and interactions in Arabidopsis primary cell walls: Evidence from solid-state NMR Carbohydrate Polymers |
