Complex Carbohydrate Magnetic Resonance Database (CCMRD)
Carbohydrates are crucial for various life activities in living organisms. The Complex Carbohydrates Magnetic Resonance Database (CCMRD), a solid-state NMR database for complex carbohydrates developed at Michigan State University. The Solid-state NMR spectroscopy reveals the molecular structure and dynamics of insoluble complex carbohydrates.
| Database ID | Trival Name | Linear Code | Compound Class | Taxonomy Domain | Species | Residue | Chemical Shifts (ppm) | Spectrometer (MHz) | Temperature (K) | pH | NMR Reference Compound | Sample Treatment | Reference |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

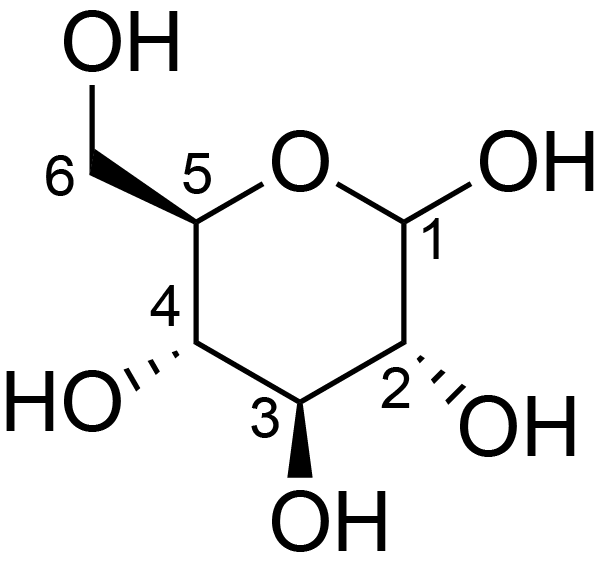

| ccmrd_56 | Cellulose | Glcp | Polysaccharide | plant | Brachypodium distachyon | b-D-Glcp | C1: 105.0, C2: 72.9, C3: 75.8, C4: 89.2, C5: 72.9, C6: 65.2 | 600 | 298.0 | None | TMS | Whole cell | Tuo Wang et al., Structure and dynamics of Brachypodium primary cell wall polysaccharides from two-dimensional (13)C solid-state nuclear magnetic resonance spectroscopy, Biochemistry, 2014 |
| ccmrd_57 | Cellulose | Glcp | Polysaccharide | plant | Brachypodium distachyon | b-D-Glcp | C1: 105.0, C2: 72.5, C3: 75.6, C4: 88.8, C5: 72.5, C6: 65.1 | 600 | 298.0 | None | TMS | Whole cell | Tuo Wang et al., Structure and dynamics of Brachypodium primary cell wall polysaccharides from two-dimensional (13)C solid-state nuclear magnetic resonance spectroscopy, Biochemistry, 2014 |
| ccmrd_58 | Cellulose | Glcp | Polysaccharide | plant | Brachypodium distachyon | b-D-Glcp | C1: 105.0, C2: 72.5, C3: 75.4, C4: 88.1, C5: 76.0 | 600 | 298.0 | None | TMS | Whole cell | Tuo Wang et al., Structure and dynamics of Brachypodium primary cell wall polysaccharides from two-dimensional (13)C solid-state nuclear magnetic resonance spectroscopy, Biochemistry, 2014 |
| ccmrd_59 | Cellulose | Glcp | Polysaccharide | plant | Brachypodium distachyon | b-D-Glcp | C1: 105.0, C2: 72.5, C3: 75.6, C4: 84.7, C5: 75.7, C6: 62.9 | 600 | 298.0 | None | TMS | Whole cell | Tuo Wang et al., Structure and dynamics of Brachypodium primary cell wall polysaccharides from two-dimensional (13)C solid-state nuclear magnetic resonance spectroscopy, Biochemistry, 2014 |
| ccmrd_60 | Cellulose | Glcp | Polysaccharide | plant | Brachypodium distachyon | b-D-Glcp | C1: 105.0, C2: 72.5, C3: 75.6, C4: 84.7, C5: 75.9, C6: 62.0 | 600 | 298.0 | None | TMS | Whole cell | Tuo Wang et al., Structure and dynamics of Brachypodium primary cell wall polysaccharides from two-dimensional (13)C solid-state nuclear magnetic resonance spectroscopy, Biochemistry, 2014 |

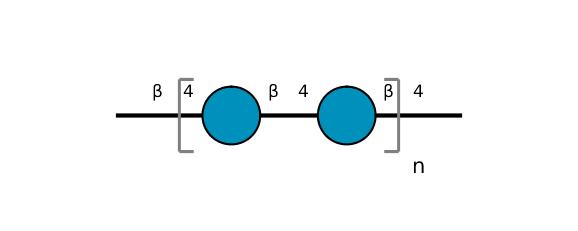

| ccmrd_61 | Cellulose | Glcp | Polysaccharide | plant | Brachypodium distachyon | b-D-Glcp | C1: 105.0, C2: 72.5, C3: 75.5, C4: 83.9, C5: 74.0, C6: 61.8 | 600 | 298.0 | None | TMS | Whole cell | Tuo Wang et al., Structure and dynamics of Brachypodium primary cell wall polysaccharides from two-dimensional (13)C solid-state nuclear magnetic resonance spectroscopy, Biochemistry, 2014 |

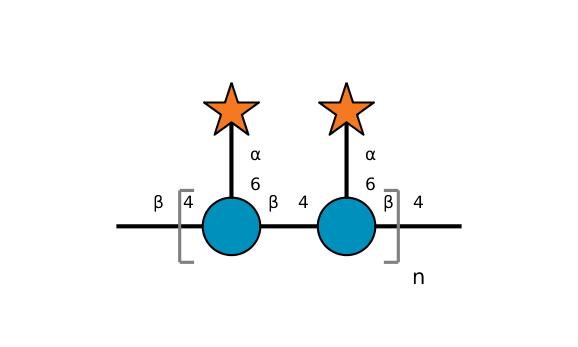

| ccmrd_63 | Xyloglucan | [aDXylp(1-2)]bDGlcp(1-6)bDGlcp | Polysaccharide | plant | Brachypodium distachyon | a-D-Xylp | C1: 99.6, C2: 72.5, C3: 74.2, C4: 70.4, C5: 62.6 | 600 | 298.0 | None | TMS | Whole cell | Tuo Wang et al., Structure and dynamics of Brachypodium primary cell wall polysaccharides from two-dimensional (13)C solid-state nuclear magnetic resonance spectroscopy, Biochemistry, 2014 |
| ccmrd_65 | Arabinan | Araf | Polysaccharide | plant | Brachypodium distachyon | ?-?-Araf | C1: 107.1, C2: 89.8, C3: 76.8, C4: 78.6, C5: 70.7 | 600 | 298.0 | None | TMS | Whole cell | Tuo Wang et al., Structure and dynamics of Brachypodium primary cell wall polysaccharides from two-dimensional (13)C solid-state nuclear magnetic resonance spectroscopy, Biochemistry, 2014 |
| ccmrd_66 | Arabinan | Araf | Polysaccharide | plant | Brachypodium distachyon | ?-?-Araf | C5: 68.8 | 600 | 298.0 | None | TMS | Whole cell | Tuo Wang et al., Structure and dynamics of Brachypodium primary cell wall polysaccharides from two-dimensional (13)C solid-state nuclear magnetic resonance spectroscopy, Biochemistry, 2014 |
| ccmrd_67 | Arabinan | Araf | Polysaccharide | plant | Brachypodium distachyon | ?-?-Araf | C1: 107.3, C2: 87.8, C3: 72.6 | 600 | 298.0 | None | TMS | Whole cell | Tuo Wang et al., Structure and dynamics of Brachypodium primary cell wall polysaccharides from two-dimensional (13)C solid-state nuclear magnetic resonance spectroscopy, Biochemistry, 2014 |
