Complex Carbohydrate Magnetic Resonance Database (CCMRD)
A solid-state NMR database for complex carbohydrates developed at Michigan State University. Solid-state NMR spectroscopy reveals the molecular structure and 3D dynamics of insoluble complex carbohydrates and cell wall polymers.
669 Compound Entries
Solid-State NMR Shifts
SNFG Structure Notation
| Database ID | Trivial Name | Linear Code | Compound Class | Taxonomy Domain | Species | Residue | SNFG Diagram | Chemical Structure | Chemical Shifts (ppm) | Spectrometer (MHz) | Temp (K) | pH | Reference Compound | Sample Treatment | Reference & Publication |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ccmrd_295 | Galactan | Galp | Polysaccharide | other | Kappa-carrageenan | ?-?-Galp |
|
|
C1: 106.6, C2: 70.4, C3: 80.8, C4: 78.3, C5: 78.3, C6: 63.5 | 100 | 298.0 | - | TMS | Purified carrageenan |
Cyrille Rochas et al. (1989)
Solid state 13C-NMR spectroscopy of red seaweeds, agars and carrageenans Carbohydrate Polymers |

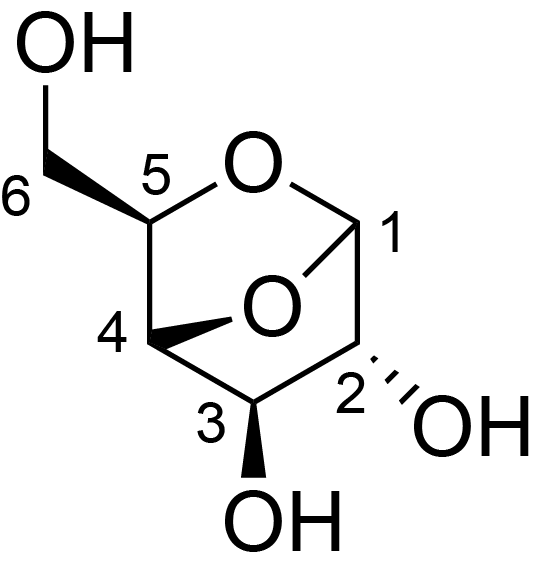

| ccmrd_296 | anhydrogalactose | An-Galp | Monosaccharide | other | Kappa-carrageenan | ?-?-An-Galp | SNFG N/A |
|
C1: 95.8, C2: 70.4, C3: 80.8, C4: 80.8, C5: 78.3, C6: 70.4 | 100 | 298.0 | - | TMS | Purified carrageenan |
Cyrille Rochas et al. (1989)
Solid state 13C-NMR spectroscopy of red seaweeds, agars and carrageenans Carbohydrate Polymers |
| ccmrd_297 | Galactan | Galp | Polysaccharide | other | Iota-carrageenan | ?-?-Galp |
|
|
C1: 106.4, C2: 70.8, C3: 78.7, C4: 70.8, C5: 75.8, C6: 63.5 | 100 | 298.0 | - | TMS | Purified carrageenan |
Cyrille Rochas et al. (1989)
Solid state 13C-NMR spectroscopy of red seaweeds, agars and carrageenans Carbohydrate Polymers |
| ccmrd_298 | Anhydrogalactose | An-Galp | Monosaccharide | other | Iota-carrageenan | ?-?-An-Galp | SNFG N/A |
|
C1: 92.1, C2: 75.8, C3: 78.7, C4: 78.7, C5: 78.7, C6: 70.8 | 100 | 298.0 | - | TMS | Purified carrageenan |
Cyrille Rochas et al. (1989)
Solid state 13C-NMR spectroscopy of red seaweeds, agars and carrageenans Carbohydrate Polymers |

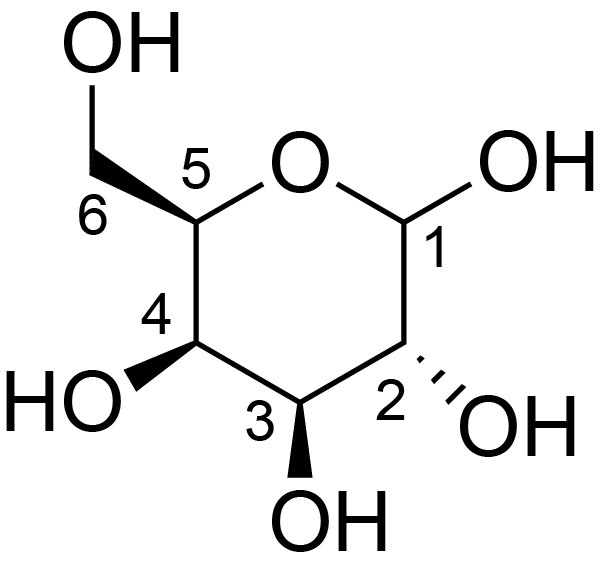

| ccmrd_299 | Galactan | Galp | Polysaccharide | other | Agarose | ?-?-Galp |
|
|
C1: 99.5, C2: 70.8, C3: 80.8, C4: 76.7, C5: 76.7, C6: 63.5 | 100 | 298.0 | - | TMS | Purified agarose |
Cyrille Rochas et al. (1989)
Solid state 13C-NMR spectroscopy of red seaweeds, agars and carrageenans Carbohydrate Polymers |

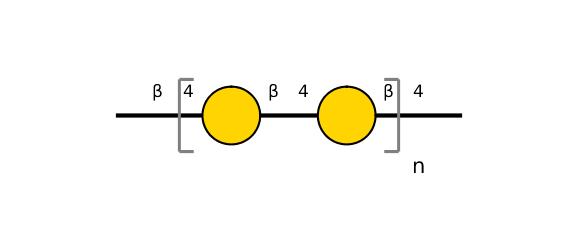

| ccmrd_300 | Galactan | Galp | Polysaccharide | other | Agarose | b-?-Galp |
|
|
C1: 99.5 | 100 | 298.0 | - | TMS | Purified agarose |
Cyrille Rochas et al. (1989)
Solid state 13C-NMR spectroscopy of red seaweeds, agars and carrageenans Carbohydrate Polymers |
| ccmrd_301 | Galactan | Galp | Polysaccharide | other | Agarose | a-?-Galp |
|
|
C1: 93.2 | 100 | 298.0 | - | TMS | Purified agarose |
Cyrille Rochas et al. (1989)
Solid state 13C-NMR spectroscopy of red seaweeds, agars and carrageenans Carbohydrate Polymers |
| ccmrd_302 | Anhydrogalactose | An-Galp | Monosaccharide | other | Agarose | ?-?-An-Galp | SNFG N/A |
|
C1: 99.5, C2: 70.8, C3: 80.8, C4: 76.7, C5: 76.7, C6: 70.8 | 100 | 298.0 | - | TMS | Purified agarose |
Cyrille Rochas et al. (1989)
Solid state 13C-NMR spectroscopy of red seaweeds, agars and carrageenans Carbohydrate Polymers |
| ccmrd_303 | Galactan | Galp | Polysaccharide | other | Agarose | ?-?-Galp |
|
|
C1: 99.9, C2: 70.9, C3: 81.4, C4: 70.9, C5: 77.0, C6: 63.9 | 100 | 298.0 | - | TMS | Purified agarose |
Cyrille Rochas et al. (1989)
Solid state 13C-NMR spectroscopy of red seaweeds, agars and carrageenans Carbohydrate Polymers |
| ccmrd_304 | Anhydrogalactose | An-Galp | Monosaccharide | other | Agarose | ?-?-An-Galp | SNFG N/A |
|
C1: 99.9, C2: 70.9, C3: 81.4, C4: 77.0, C5: 77.0, C6: 70.9 | 100 | 298.0 | - | TMS | Purified agarose |
Cyrille Rochas et al. (1989)
Solid state 13C-NMR spectroscopy of red seaweeds, agars and carrageenans Carbohydrate Polymers |
