Complex Carbohydrate Magnetic Resonance Database (CCMRD)
A solid-state NMR database for complex carbohydrates developed at Michigan State University. Solid-state NMR spectroscopy reveals the molecular structure and 3D dynamics of insoluble complex carbohydrates and cell wall polymers.
669 Compound Entries
Solid-State NMR Shifts
SNFG Structure Notation
| Database ID | Trivial Name | Linear Code | Compound Class | Taxonomy Domain | Species | Residue | SNFG Diagram | Chemical Structure | Chemical Shifts (ppm) | Spectrometer (MHz) | Temp (K) | pH | Reference Compound | Sample Treatment | Reference & Publication |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ccmrd_285 | Starch | Glcp | Polysaccharide | algae | Chlamydomonas reinhardtii | a-?-Glcp |
|
|
C1: 103.0, C2: 73.0, C3: 75.3, C4: 81.7, C5: 71.5, C6: 60.2 | 600 | 308.0 | - | Adamantane | Whole cell |
Alexandre Poulhazan et al. (2018)
Unambiguous Ex Situ and in Cell 2D 13C Solid-State NMR Characterization of Starch and Its Constituents International journal of molecular sciences |

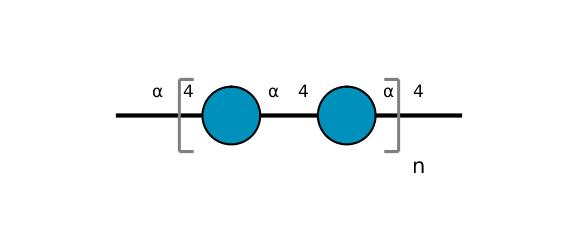

| ccmrd_286 | Starch | Glcp | Polysaccharide | algae | Chlamydomonas reinhardtii | a-?-Glcp |
|
|
C1: 92.7, C2: 72.4, C3: 74.9, C4: 76.9, C5: 70.4, C6: 61.4 | 600 | 308.0 | - | Adamantane | Whole cell |
Alexandre Poulhazan et al. (2018)
Unambiguous Ex Situ and in Cell 2D 13C Solid-State NMR Characterization of Starch and Its Constituents International journal of molecular sciences |
| ccmrd_287 | Starch | Glcp | Polysaccharide | algae | Chlamydomonas reinhardtii | a-?-Glcp | SNFG N/A |
|
C1: 96.7, C2: 74.9 | 600 | 308.0 | - | Adamantane | Whole cell |
Alexandre Poulhazan et al. (2018)
Unambiguous Ex Situ and in Cell 2D 13C Solid-State NMR Characterization of Starch and Its Constituents International journal of molecular sciences |
| ccmrd_288 | Xylan | Xylp | Polysaccharide | algae | Palmaria palmata | ?-?-Xylp |
|
|
C1: 103.4, C3: 73.7, C4: 76.5, C5: 63.0 | 400 | 295.0 | - | ND | Purified xylan |
Marc Lahaye et al. (2003)
Solid-state 13C NMR spectroscopy studies of xylans in the cell wall of Palmaria palmata (L. Kuntze, Rhodophyta). Carbohydrate research |
| ccmrd_289 | Xylan | Xylp | Polysaccharide | algae | Palmaria palmata | ?-?-Xylp |
|
|
C1: 101.7, C2: 72.7, C3: 83.6, C4: 67.8, C5: 64.9 | 400 | 295.0 | - | ND | Purified xylan |
Marc Lahaye et al. (2003)
Solid-state 13C NMR spectroscopy studies of xylans in the cell wall of Palmaria palmata (L. Kuntze, Rhodophyta). Carbohydrate research |

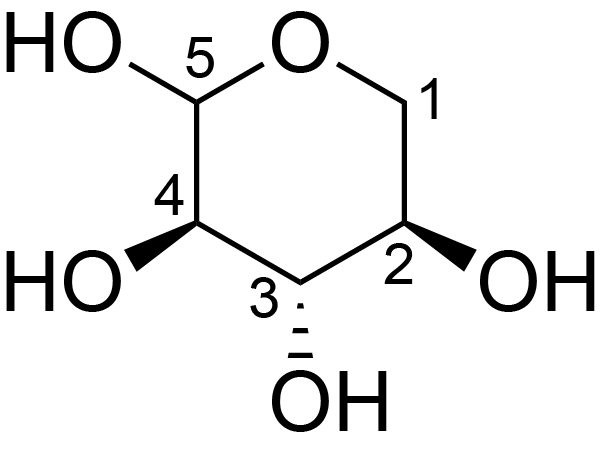

| ccmrd_290 | Xylan | Xylp | Polysaccharide | algae | Palmaria palmata | ?-?-Xylp |
|
|
C1: 101.7, C2: 72.7, C3: 73.7, C4: 76.5, C5: 63.0 | 400 | 295.0 | - | ND | Purified xylan |
Marc Lahaye et al. (2003)
Solid-state 13C NMR spectroscopy studies of xylans in the cell wall of Palmaria palmata (L. Kuntze, Rhodophyta). Carbohydrate research |
| ccmrd_291 | Xylan | Xylp | Polysaccharide | algae | Caulerpa taxifolia | b-D-Xylp |
|
|
C1: 105.3, C2: 75.1, C3: 90.1, C4: 69.0, C5: 67.0 | 400 | 295.0 | - | ND | Purified xylan |
Marc Lahaye et al. (2003)
Solid-state 13C NMR spectroscopy studies of xylans in the cell wall of Palmaria palmata (L. Kuntze, Rhodophyta). Carbohydrate research |
| ccmrd_292 | Xylan | Xylp | Polysaccharide | algae | Caulerpa taxifolia | b-D-Xylp |
|
|
C1: 104.7, C2: 72.9, C3: 86.3, C4: 68.5, C5: 64.9 | 400 | 295.0 | - | ND | Purified xylan |
Marc Lahaye et al. (2003)
Solid-state 13C NMR spectroscopy studies of xylans in the cell wall of Palmaria palmata (L. Kuntze, Rhodophyta). Carbohydrate research |
| ccmrd_293 | Xylan | Xylp | Polysaccharide | plant | Birch wood | b-D-Xylp |
|
|
C1: 101.7, C2: 74.3, C3: 74.3, C4: 80.0, C5: 63.4 | 400 | 295.0 | - | ND | Purified xylan |
Marc Lahaye et al. (2003)
Solid-state 13C NMR spectroscopy studies of xylans in the cell wall of Palmaria palmata (L. Kuntze, Rhodophyta). Carbohydrate research |

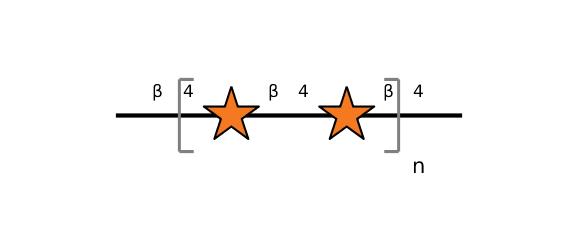

| ccmrd_294 | Xylan | Xylp | Polysaccharide | plant | Birch wood | b-D-Xylp |
|
|
C1: 101.7, C2: 74.3, C3: 74.3, C4: 82.0, C5: 63.4 | 400 | 295.0 | - | ND | Purified xylan |
Marc Lahaye et al. (2003)
Solid-state 13C NMR spectroscopy studies of xylans in the cell wall of Palmaria palmata (L. Kuntze, Rhodophyta). Carbohydrate research |
