Complex Carbohydrate Magnetic Resonance Database (CCMRD)
A solid-state NMR database for complex carbohydrates developed at Michigan State University. Solid-state NMR spectroscopy reveals the molecular structure and 3D dynamics of insoluble complex carbohydrates and cell wall polymers.
669 Compound Entries
Solid-State NMR Shifts
SNFG Structure Notation
| Database ID | Trivial Name | Linear Code | Compound Class | Taxonomy Domain | Species | Residue | SNFG Diagram | Chemical Structure | Chemical Shifts (ppm) | Spectrometer (MHz) | Temp (K) | pH | Reference Compound | Sample Treatment | Reference & Publication |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ccmrd_201 | Cellulose | Glcp | Polysaccharide | other | Kraft pulp | b-D-Glcp | SNFG N/A |
|
C1: 105.0, C5: 84.0 | 200 | 298.0 | - | ND | Partial drying |
Roger H. Newman et al. (2004)
Carbon-13 NMR evidence for cocrystallization of cellulose as a mechanism for hornification of bleached kraft pulp Cellulose |

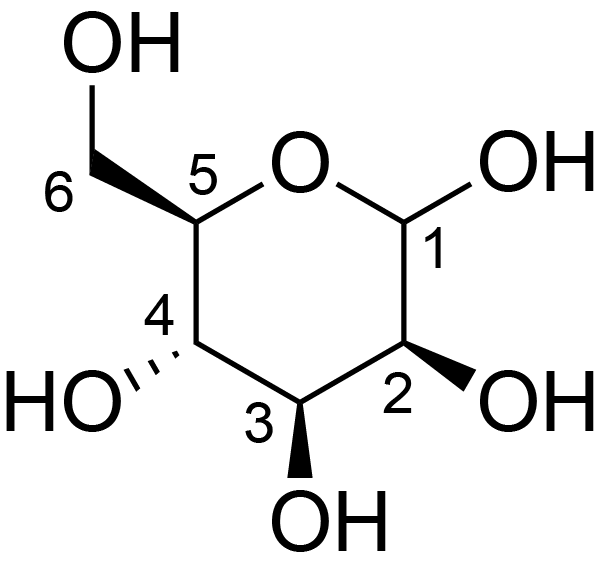

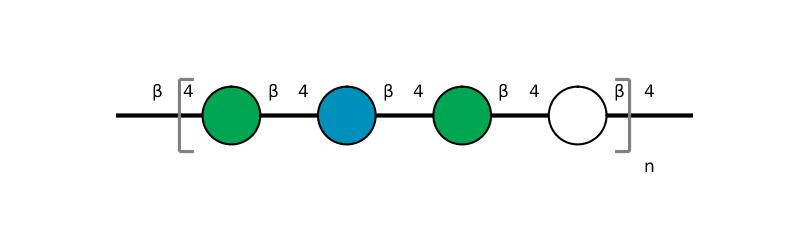

| ccmrd_202 | Glucomannan | (1-4)bDManpA(1-4)bDGlcp | Polysaccharide | other | Kraft pulp | b-D-Manp |
|
|
C1: 102.0, C4: 82.5 | 200 | 298.0 | - | ND | Partial drying |
Roger H. Newman et al. (2004)
Carbon-13 NMR evidence for cocrystallization of cellulose as a mechanism for hornification of bleached kraft pulp Cellulose |

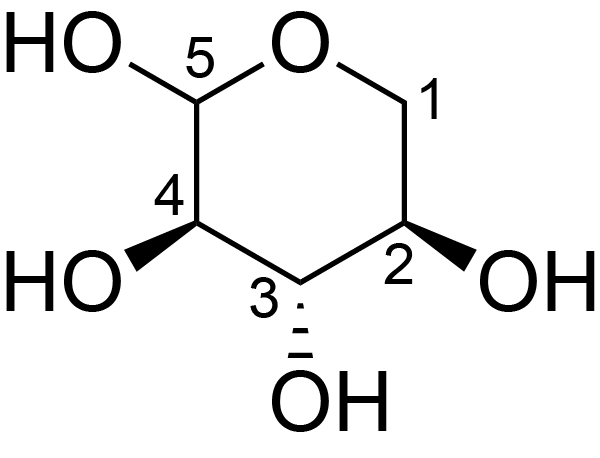

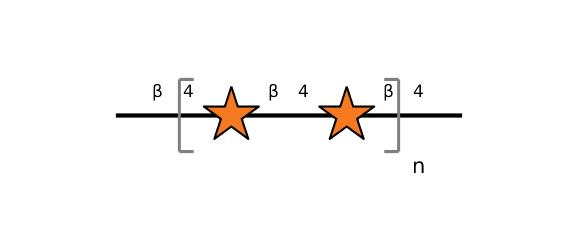

| ccmrd_203 | Xylan | Xylp | Polysaccharide | other | Kraft pulp | ?-?-Xylp |
|
|
C1: 102.0, C2: 72.9, C3: 74.7, C4: 74.7, C5: 63.4 | 300 | 298.0 | - | ND | Xylanase treated |
Anita Teleman et al. (2001)
On the accessibility and structure of xylan in birch kraft pulp Cellulose |
| ccmrd_204 | Xylan | Xylp | Polysaccharide | other | Kraft pulp | ?-?-Xylp |
|
|
C1: 101.4, C2: 74.3, C3: 74.3, C4: 74.3, C5: 62.9 | 300 | 298.0 | - | ND | Xylanase treated |
Anita Teleman et al. (2001)
On the accessibility and structure of xylan in birch kraft pulp Cellulose |
| ccmrd_205 | Xylan | Xylp | Polysaccharide | other | Kraft pulp | ?-?-Xylp |
|
|
C1: 102.2, C2: 73.2, C3: 75.2, C4: 77.2, C5: 62.6 | 300 | 298.0 | - | ND | Xylanase treated |
Anita Teleman et al. (2001)
On the accessibility and structure of xylan in birch kraft pulp Cellulose |
| ccmrd_206 | Xylan | Xylp | Polysaccharide | other | Kraft pulp | ?-?-Xylp |
|
|
C1: 102.1, C2: 74.4, C3: 74.4, C4: 74.4, C5: 63.7 | 300 | 298.0 | - | ND | Xylanase treated |
Anita Teleman et al. (2001)
On the accessibility and structure of xylan in birch kraft pulp Cellulose |
| ccmrd_209 | Cellulose | Glcp | Polysaccharide | plant | Tilia cordata Mill. | b-D-Glcp |
|
|
C1: 104.9, C2: 74.6, C3: 74.6, C4: 88.5, C5: 74.6, C6: 64.7 | 300 | 289.0 | - | TMS | Fungus treated wood |
Carmen-Mihaela Popescua et al. (2011)
Carbon-13 CP/MAS solid state NMR and X-ray diffraction spectroscopy studies on lime wood decayed by Chaetomium globosum Carbohydrate Polymers |
| ccmrd_210 | Cellulose | Glcp | Polysaccharide | plant | Tilia cordata Mill. | b-D-Glcp |
|
|
C1: 104.9, C4: 83.4, C6: 62.4 | 300 | 289.0 | - | TMS | Fungus treated wood |
Carmen-Mihaela Popescua et al. (2011)
Carbon-13 CP/MAS solid state NMR and X-ray diffraction spectroscopy studies on lime wood decayed by Chaetomium globosum Carbohydrate Polymers |
| ccmrd_211 | Cellulose | Glcp | Polysaccharide | other | Biosynthesized cellulose | b-D-Glcp |
|
|
C1: 105.0, C2: 70.1, C3: 73.9, C4: 89.1, C5: 72.6, C6: 65.2 | 400 | 298.0 | - | D-glycine | Biosynthesized and purified cellulose | |
| ccmrd_212 | Cellulose | Glcp | Polysaccharide | other | Biosynthesized cellulose | b-D-Glcp |
|
|
C1: 105.0, C2: 71.6, C3: 74.7, C4: 90.0, C5: 70.1, C6: 65.2 | 400 | 298.0 | - | D-glycine | Biosynthesized and purified cellulose |
