Complex Carbohydrate Magnetic Resonance Database (CCMRD)
A solid-state NMR database for complex carbohydrates developed at Michigan State University. Solid-state NMR spectroscopy reveals the molecular structure and 3D dynamics of insoluble complex carbohydrates and cell wall polymers.
669 Compound Entries
Solid-State NMR Shifts
SNFG Structure Notation
| Database ID | Trivial Name | Linear Code | Compound Class | Taxonomy Domain | Species | Residue | SNFG Diagram | Chemical Structure | Chemical Shifts (ppm) | Spectrometer (MHz) | Temp (K) | pH | Reference Compound | Sample Treatment | Reference & Publication |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

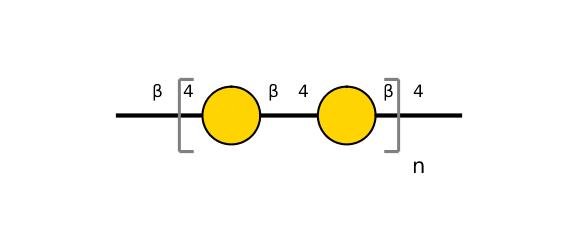

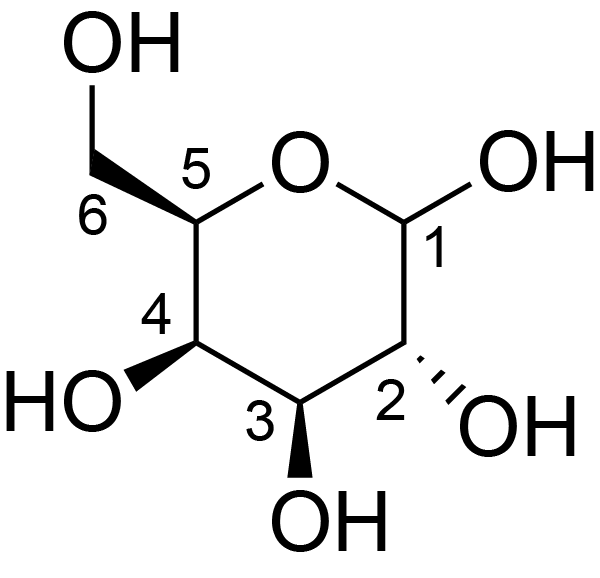

| ccmrd_141 | Galactan | Galp | Polysaccharide | plant | Arabidopsis thaliana | b-D-Galp |
|
|
C2: 72.5, C3: 70.2 | 800 | 298.0 | - | TMS | Whole cell |
Pyae Phyo et al. (2017)
Gradients in Wall Mechanics and Polysaccharides along Growing Inflorescence Stems Plant physiology |

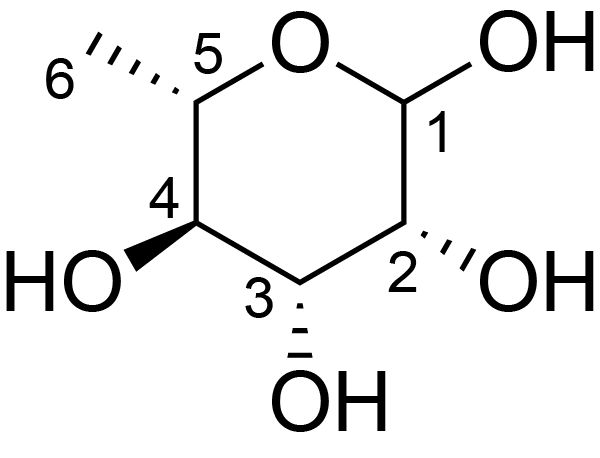

| ccmrd_142 | Rhamnogalacturonan | (1-4)αDGalpA(1-2)αLRhap | Polysaccharide | plant | Arabidopsis thaliana | a-L-Rhap |
|
|
C5: 68.7, C6: 17.8 | 800 | 298.0 | - | TMS | Whole cell |
Pyae Phyo et al. (2017)
Gradients in Wall Mechanics and Polysaccharides along Growing Inflorescence Stems Plant physiology |
| ccmrd_143 | Rhamnogalacturonan | (1-4)αDGalpA(1-2)αLRhap | Polysaccharide | plant | Arabidopsis thaliana | a-L-Rhap |
|
|
C5: 70.1, C6: 17.4 | 800 | 298.0 | - | TMS | Whole cell |
Pyae Phyo et al. (2017)
Gradients in Wall Mechanics and Polysaccharides along Growing Inflorescence Stems Plant physiology |
| ccmrd_144 | Rhamnogalacturonan | (1-4)αDGalpA(1-2)αLRhap | Polysaccharide | plant | Arabidopsis thaliana | a-L-Rhap |
|
|
C5: 67.9, C6: 16.8 | 800 | 298.0 | - | TMS | Whole cell |
Pyae Phyo et al. (2017)
Gradients in Wall Mechanics and Polysaccharides along Growing Inflorescence Stems Plant physiology |

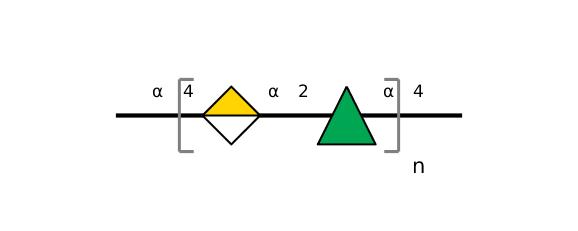

| ccmrd_145 | Rhamnogalacturonan | (1-4)αDGalpA(1-2)αLRhap | Polysaccharide | plant | Arabidopsis thaliana | a-L-Rhap |
|
|
C2: 79.8, C3: 71.0, C4: 72.7, C5: 68.0, C6: 16.1 | 800 | 298.0 | - | TMS | Whole cell |
Pyae Phyo et al. (2017)
Gradients in Wall Mechanics and Polysaccharides along Growing Inflorescence Stems Plant physiology |
| ccmrd_146 | Rhamnogalacturonan | (1-4)αDGalpA(1-2)αLRhap | Polysaccharide | plant | Arabidopsis thaliana | a-D-GalpA |
|
|
C1: 99.9, C2: 69.0, C3: 69.8, C4: 78.8, C5: 71.3, C6: 171.6 | 800 | 298.0 | - | TMS | Whole cell |
Pyae Phyo et al. (2017)
Gradients in Wall Mechanics and Polysaccharides along Growing Inflorescence Stems Plant physiology |
| ccmrd_147 | Rhamnogalacturonan | (1-4)αDGalpA(1-2)αLRhap | Polysaccharide | plant | Arabidopsis thaliana | a-D-GalpA |
|
|
C1: 101.0, C2: 68.7, C5: 72.1, C6: 175.8 | 800 | 298.0 | - | TMS | Whole cell |
Pyae Phyo et al. (2017)
Gradients in Wall Mechanics and Polysaccharides along Growing Inflorescence Stems Plant physiology |
| ccmrd_148 | Rhamnogalacturonan | (1-4)αDGalpA(1-2)αLRhap | Polysaccharide | plant | Arabidopsis thaliana | a-D-GalpA |
|
|
C1: 101.7, C2: 68.6 | 800 | 298.0 | - | TMS | Whole cell |
Pyae Phyo et al. (2017)
Gradients in Wall Mechanics and Polysaccharides along Growing Inflorescence Stems Plant physiology |

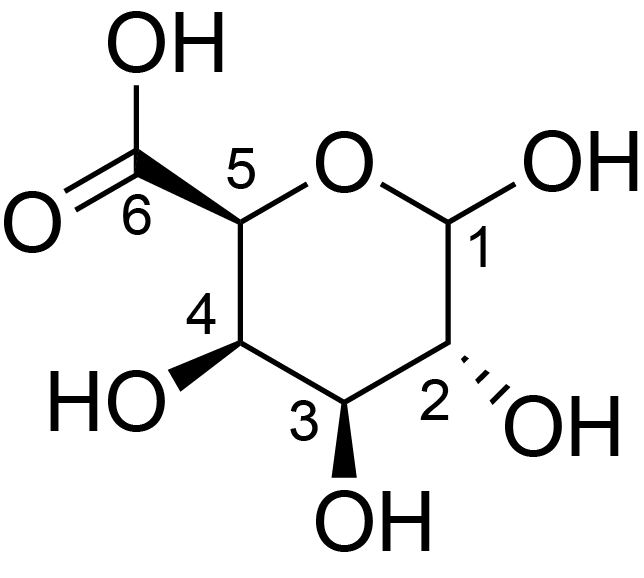

| ccmrd_149 | Rhamnogalacturonan | (1-4)αDGalpA(1-2)αLRhap | Polysaccharide | plant | Arabidopsis thaliana | a-D-GalpA |
|
|
C1: 101.0, C2: 66.8 | 800 | 298.0 | - | TMS | Whole cell |
Pyae Phyo et al. (2017)
Gradients in Wall Mechanics and Polysaccharides along Growing Inflorescence Stems Plant physiology |
| ccmrd_150 | Rhamnogalacturonan | (1-4)αDGalpA(1-2)αLRhap | Polysaccharide | plant | Arabidopsis thaliana | a-D-GalpA |
|
|
C1: 100.2, C2: 69.3 | 800 | 298.0 | - | TMS | Whole cell |
Pyae Phyo et al. (2017)
Gradients in Wall Mechanics and Polysaccharides along Growing Inflorescence Stems Plant physiology |
